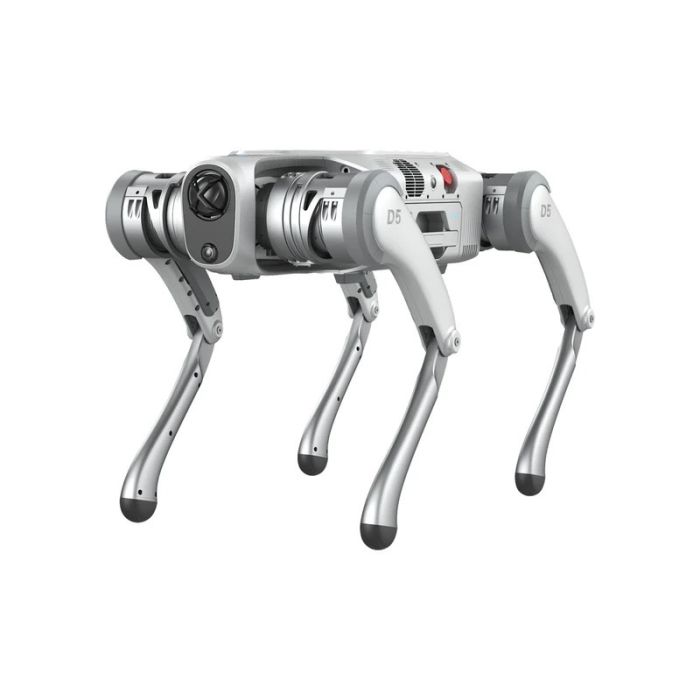

PUDU D5 Quadruped Robot Dog

A security team judges a patrol robot by the round it finishes, not by the demo it wins. A night shift on a utility yard, rain blowing sideways and a loading ramp half buried in slush is the real test. The PUDU D5 Quadruped Robot Dog is PUDU ROBOTICS' answer for teams that want a legged machine they can schedule like a crew member instead of babysitting it like a prototype. It pairs a sealed IP67 body with a 1000 Wh battery, dual 3D LiDAR and onboard computing rated at up to 275 TOPS, so the robot can perceive, plan and keep moving when the site gets messy.

Robots USA sells the PUDU D5 and supplies it to industrial operators, security providers, utilities, universities and public agencies across the United States and Canada. Every unit is offered under a formal quotation prepared by Robots USA, which also coordinates delivery and remains your contact for setup questions, SDK integration and ongoing support once the robot is working on site.

Background

A service-robot maker steps outside

PUDU ROBOTICS built its reputation on commercial service robots that deliver, guide and clean in restaurants, hotels, hospitals and offices. That work demands reliable autonomous navigation around people, fleet supervision and remote monitoring, which are the same disciplines an outdoor robot needs. The D5 series carries that experience into terrain where floors are no longer flat and conditions change by the hour. PUDU classifies the D5 as an industry-grade autonomous quadruped robot, and within this store it sits in the Standard Quadrupeds category alongside PUDU's experimental X-Lab line.

Compute and perception at the core

What separates a field robot from a remote-controlled toy is how much it can decide for itself. The D5 is built on a dual-processor architecture that combines an NVIDIA Jetson Orin AGX 64GB with an RK3588, delivering up to 275 TOPS of computing performance. That processing feeds on two 3D LiDAR units and four fisheye cameras, giving the robot a wide picture of its surroundings for mapping, localization and obstacle avoidance. Operators can direct it by voice and by more than 10 natural gestures, captured through deep-vision sensing and a 6-mic array, or take over through the RCOS Remote Control System with a live panoramic video feed.

Technical Specifications

Specifications are shown as published by the manufacturer and are confirmed against the current datasheet at quotation.

What sets the PUDU D5 apart from the D5-W?

The two versions share the D5 series platform, and the published figures that differ between them are few but telling. The D5 weighs 61 kg (134.5 lbs) with its battery, while the D5-W comes in at 62 kg (136.7 lbs). The D5 is rated for a maximum step height of 30 cm (11.8 in), against 25 cm (9.84 in) for the D5-W. In practice, that makes the D5 the version to choose when stairs, curbs, pipe racks and uneven ledges dominate the route.

The PUDU D5-W Wheeled Quadruped Robot Dog is offered on its own page as the wheeled variant. Beyond weight and step height, the sources do not publish a full side-by-side comparison, so any other difference between the two is confirmed by Robots USA at quotation rather than assumed here.

Can the PUDU D5 be adapted to a specific job?

Yes, and that is a large part of its appeal. PUDU describes an open architecture that accepts add-ons such as delivery boxes and inspection gimbals, so the same base robot can be configured for security rounds, equipment inspection, light logistics or research work. PUDU also provides a comprehensive SDK, developer documentation and integration support, which lets in-house engineers or integrators build applications around their own sensors, workflows and reporting systems.

Day-to-day control is flexible as well. Field staff can work with the robot through voice commands and gestures, while supervisors use the RCOS Remote Control System to monitor real-time operating status, watch the live panoramic video feed and issue commands instantly. For robots that spend time unattended, the D5 raises an alarm on a theft attempt and supports battery locking and GPS location reporting, which matters when a valuable machine is working across a large, open site.

Who is the PUDU D5 Quadruped Robot Dog for?

Security providers and corporate security teams are a natural fit: the D5 can walk perimeter rounds, check gates and stairwells and stream video back to a control room, with remote takeover available at any point. Utilities, energy operators and process plants can use it for routine inspection loops, mounting an inspection gimbal and sending the robot where rough ground, weather or repetitive routes make human rounds costly. Campuses, industrial parks and logistics operators may use a delivery box configuration to move items between buildings across mixed terrain.

Universities and corporate research labs are another strong segment. The SDK, developer documentation and serious onboard computing make the D5 a capable platform for work in autonomy, perception and embodied AI. Public agencies running pilot programs in outdoor monitoring will also find the weather sealing and cold-start capability relevant.

Buyers whose routes are largely paved and who value rolling over climbing may want to compare the PUDU D5-W Wheeled Quadruped Robot Dog, keeping in mind its lower published step height. Where stairs and high obstacles are routine, the D5 is the stronger match.

What is the PUDU D5 Quadruped Robot Dog used for?

1. Security patrol: scheduled perimeter and building rounds with live panoramic video sent back to operators.
2. Industrial inspection: gimbal-equipped routes through plants, substations and yards where conditions are harsh or repetitive.
3. Site logistics: carrying items in a delivery box across campuses, industrial parks and rough outdoor paths.
4. Research and development: a programmable platform for autonomy, mapping and perception projects through the PUDU SDK.
5. Cold-weather operations: outdoor tasks in winter conditions, supported by its cold-start capability and sealed body.
6. Remote monitoring: supervised operation through RCOS when a person needs to see a location without walking it.

Pricing and Availability

Robots USA supplies the PUDU D5 under a formal quotation tailored to your project, version and configuration, including any add-ons such as delivery boxes or inspection gimbals. Delivery, customs and support are arranged with the quotation, so you receive one clear proposal covering the robot and what it takes to put it to work. Specifications that the manufacturer has not published, such as charging time, connectivity and the contents of the box, are confirmed in that same document. To start the process, use the quotation request available on this page.

Frequently Asked Questions

Is the PUDU D5 weatherproof?

The D5 carries an IP67 ingress protection rating and is rated to operate from –20°C to 55°C (–4°F to 131°F). It can also cold-start below –10°C (below 14°F).

How long does the PUDU D5 run on a charge?

Its 1000 Wh battery provides an operating time of 2 - 2.5 hours. The manufacturer has not published the charging time; Robots USA confirms it at quotation.

How much can the PUDU D5 carry?

The published continuous walking payload is 20–30 kg (44–66 lbs). Add-on modules such as delivery boxes and inspection gimbals mount through its open architecture.

What terrain can the PUDU D5 handle?

It climbs obstacles of up to 80 cm (31.5 in), takes steps of up to 30 cm (11.8 in) and is rated for 25° ascents and 45° descents. The series cruises at up to 5 m/s.

Can developers program the PUDU D5?

Yes. PUDU provides a comprehensive SDK, developer documentation and integration support for building applications around specific use cases.

What comes in the box?

The manufacturer has not published the list of included accessories. Robots USA confirms the exact contents with your quotation.

Where can I buy the PUDU D5 Quadruped Robot Dog and what does it cost?

You can buy the PUDU D5 from Robots USA, which supplies it across the United States and Canada. Pricing depends on version, configuration and project scope, so it is provided in a formal quotation requested through this page.

Summary

A patrol robot earns its place by finishing the round, night after night, whatever the yard throws at it. The PUDU D5 Quadruped Robot Dog is built around that standard: an IP67 sealed body, cold-start capability, a 1000 Wh battery, dual 3D LiDAR with four fisheye cameras and a dual-processor computer rated at up to 275 TOPS. Its open architecture, SDK and RCOS remote control turn it into a platform for security, inspection, logistics and research rather than a single-purpose machine, while the D5-W gives buyers with different routes another option in the same series. Robots USA quotes, delivers and supports the D5 for organizations across the United States and Canada. For teams ready to put a legged robot on real routes, this page is the starting point.
